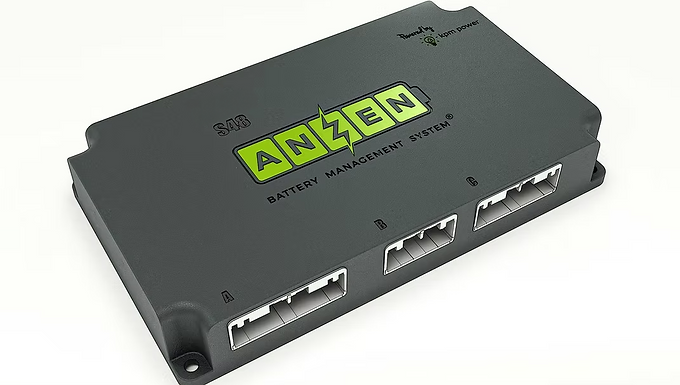

Anzen S48

The Anzen S48 secondary board combined with Anzen M800 primary control board is UL certified for functional safety following UL2580 and UL1973 standards.

Integrated with passive balancing, the module provides single cell voltage and temperature readings with real-time monitoring capabilities.

Specifications

• Slow and fast charging capability

• Low Power Mode

• Works with various lithium chemistries

• UL certified to UL2580 and UL1973

• 12VDC to 800VDC Up to 1000A

• CANBus Communication

• 48 Single Cell Voltage monitoring

• SOC/SOH monitoring

• 2 Digital inputs/ 1 Digital outputs

• 12 NTC Temperature Monitoring
